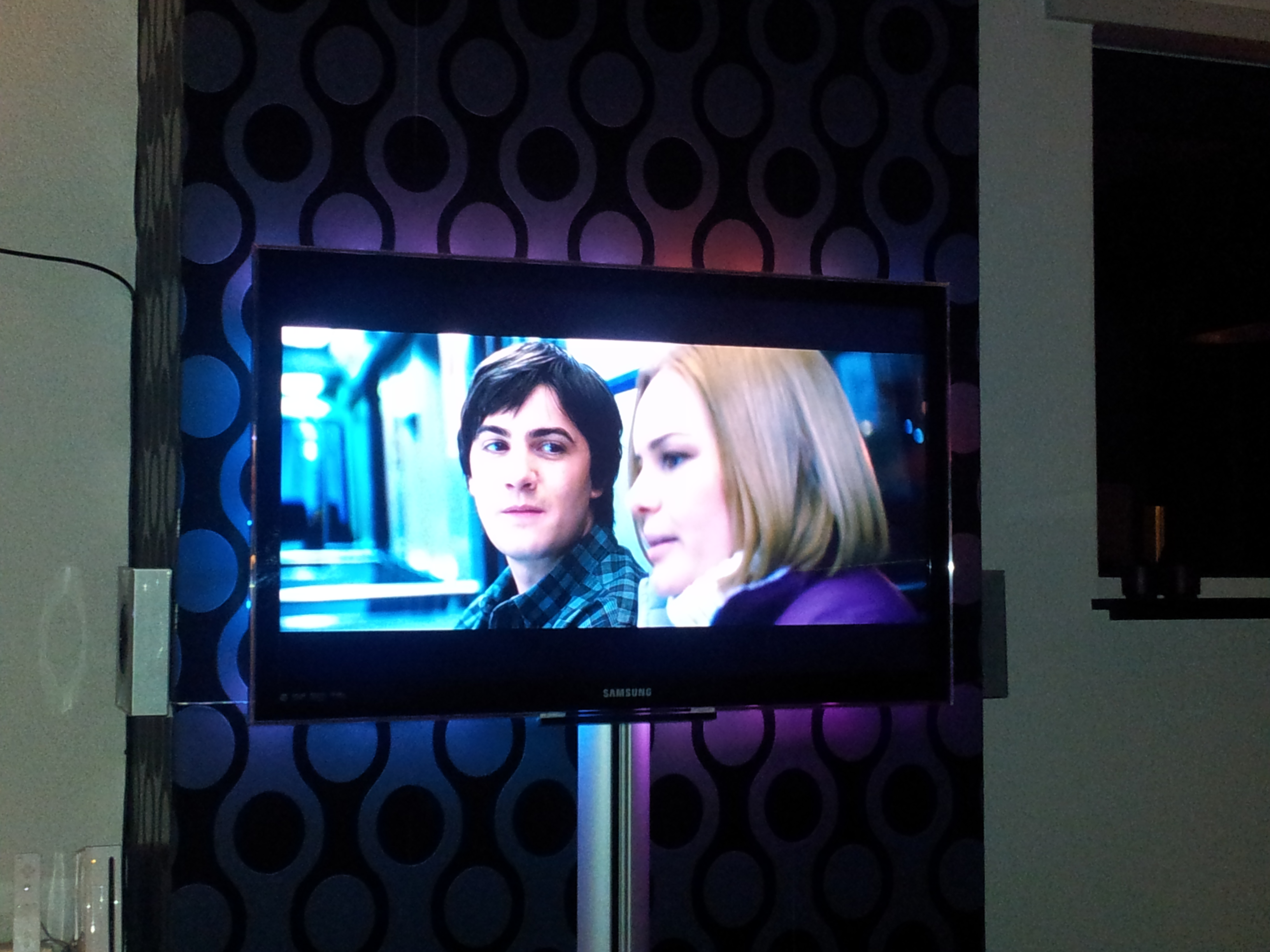

Onder XBMC is het erg makkelijk om met een arduno en een digitale RGD ledstring een ambilight clone te maken, met heel aardig resultaat.

• Arduino Uno
• RGB ledstring
• 5 volt 1A voeding (+/- 1A per 25 leds)
• Ubuntu met XBMC en de boblight plugin

Wat betreft de hardware is het vrij simpel vanaf de ledstring gaat de

• gnd naar de gnd van de arduino en de gnd van de adapter
• +5 naar de +5 van de adapter
• Serial data naar pin 11 op de arduno
• Serial Clock naar pin 13 op de arduno

vervolgens moet je ledstream.pde flashen naar je arduno, deze is hier te downloaden

ter referentie hier ook de code zelf

LEDstream.pde

// Arduino "bridge" code between host computer and WS2801-based digital
// RGB LED pixels (e.g. Adafruit product ID #322).  Intended for use
// with USB-native boards such as Teensy or Adafruit 32u4 Breakout;
// works on normal serial Arduinos, but throughput is severely limited.
// LED data is streamed, not buffered, making this suitable for larger
// installations (e.g. video wall, etc.) than could otherwise be held
// in the Arduino's limited RAM.

// Some effort is put into avoiding buffer underruns (where the output
// side becomes starved of data).  The WS2801 latch protocol, being
// delay-based, could be inadvertently triggered if the USB bus or CPU
// is swamped with other tasks.  This code buffers incoming serial data
// and introduces intentional pauses if there's a threat of the buffer
// draining prematurely.  The cost of this complexity is somewhat
// reduced throughput, the gain is that most visual glitches are
// avoided (though ultimately a function of the load on the USB bus and
// host CPU, and out of our control).

// LED data and clock lines are connected to the Arduino's SPI output.
// On traditional Arduino boards, SPI data out is digital pin 11 and
// clock is digital pin 13.  On both Teensy and the 32u4 Breakout,
// data out is pin B2, clock is B1.  LEDs should be externally
// powered -- trying to run any more than just a few off the Arduino's
// 5V line is generally a Bad Idea.  LED ground should also be
// connected to Arduino ground.

#include <SPI.h>

// LED pin for Adafruit 32u4 Breakout Board:
//#define LED_DDR  DDRE
//#define LED_PORT PORTE
//#define LED_PIN  _BV(PORTE6)
// LED pin for Teensy:
//#define LED_DDR  DDRD
//#define LED_PORT PORTD
//#define LED_PIN  _BV(PORTD6)
// LED pin for Arduino:
#define LED_DDR  DDRB
#define LED_PORT PORTB
#define LED_PIN  _BV(PORTB5)

// A 'magic word' (along with LED count & checksum) precedes each block
// of LED data; this assists the microcontroller in syncing up with the
// host-side software and properly issuing the latch (host I/O is
// likely buffered, making usleep() unreliable for latch).  You may see
// an initial glitchy frame or two until the two come into alignment.
// The magic word can be whatever sequence you like, but each character
// should be unique, and frequent pixel values like 0 and 255 are
// avoided -- fewer false positives.  The host software will need to
// generate a compatible header: immediately following the magic word
// are three bytes: a 16-bit count of the number of LEDs (high byte
// first) followed by a simple checksum value (high byte XOR low byte
// XOR 0x55).  LED data follows, 3 bytes per LED, in order R, G, B,
// where 0 = off and 255 = max brightness.

static const uint8_t magic[] = {'A','d','a'};
#define MAGICSIZE  sizeof(magic)
#define HEADERSIZE (MAGICSIZE + 3)

#define MODE_HEADER 0
#define MODE_HOLD   1
#define MODE_DATA   2

// If no serial data is received for a while, the LEDs are shut off
// automatically.  This avoids the annoying "stuck pixel" look when
// quitting LED display programs on the host computer.
static const unsigned long serialTimeout = 15000; // 15 seconds

void setup()
{
  // Dirty trick: the circular buffer for serial data is 256 bytes,
  // and the "in" and "out" indices are unsigned 8-bit types -- this
  // much simplifies the cases where in/out need to "wrap around" the
  // beginning/end of the buffer.  Otherwise there'd be a ton of bit-
  // masking and/or conditional code every time one of these indices
  // needs to change, slowing things down tremendously.
  uint8_t
    buffer[256],
    indexIn       = 0,
    indexOut      = 0,
    mode          = MODE_HEADER,
    hi, lo, chk, i, spiFlag;
  int16_t
    bytesBuffered = 0,
    hold          = 0,
    c;
  int32_t
    bytesRemaining;
  unsigned long
    startTime,
    lastByteTime,
    lastAckTime,
    t;

  LED_DDR  |=  LED_PIN; // Enable output for LED
  LED_PORT &= ~LED_PIN; // LED off

  Serial.begin(115200); // Teensy/32u4 disregards baud rate; is OK!

  SPI.begin();
  SPI.setBitOrder(MSBFIRST);
  SPI.setDataMode(SPI_MODE0);
  SPI.setClockDivider(SPI_CLOCK_DIV8);  // 2 MHz
  // WS2801 datasheet recommends max SPI clock of 2 MHz, and 50 Ohm
  // resistors on SPI lines for impedance matching.  In practice and
  // at short distances, 2 MHz seemed to work reliably enough without
  // resistors, and 4 MHz was possible with a 220 Ohm resistor on the
  // SPI clock line only.  Your mileage may vary.  Experiment!
  // SPI.setClockDivider(SPI_CLOCK_DIV4);  // 4 MHz

  // Issue test pattern to LEDs on startup.  This helps verify that
  // wiring between the Arduino and LEDs is correct.  Not knowing the
  // actual number of LEDs connected, this sets all of them (well, up
  // to the first 25,000, so as not to be TOO time consuming) to red,
  // green, blue, then off.  Once you're confident everything is working
  // end-to-end, it's OK to comment this out and reprogram the Arduino.
  uint8_t testcolor[] = { 0, 0, 0, 255, 0, 0 };
  for(char n=3; n>=0; n--) {
    for(c=0; c<25000; c++) {
      for(i=0; i<3; i++) {
        for(SPDR = testcolor[n + i]; !(SPSR & _BV(SPIF)); );
      }
    }
    delay(1); // One millisecond pause = latch
  }

  Serial.print("Ada\n"); // Send ACK string to host

  startTime    = micros();
  lastByteTime = lastAckTime = millis();

  // loop() is avoided as even that small bit of function overhead
  // has a measurable impact on this code's overall throughput.

  for(;;) {

    // Implementation is a simple finite-state machine.
    // Regardless of mode, check for serial input each time:
    t = millis();
    if((bytesBuffered < 256) && ((c = Serial.read()) >= 0)) {
      buffer[indexIn++] = c;
      bytesBuffered++;
      lastByteTime = lastAckTime = t; // Reset timeout counters
    } else {
      // No data received.  If this persists, send an ACK packet
      // to host once every second to alert it to our presence.
      if((t - lastAckTime) > 1000) {
        Serial.print("Ada\n"); // Send ACK string to host
        lastAckTime = t; // Reset counter
      }
      // If no data received for an extended time, turn off all LEDs.
      if((t - lastByteTime) > serialTimeout) {
        for(c=0; c<32767; c++) {
          for(SPDR=0; !(SPSR & _BV(SPIF)); );
        }
        delay(1); // One millisecond pause = latch
        lastByteTime = t; // Reset counter
      }
    }

    switch(mode) {

     case MODE_HEADER:

      // In header-seeking mode.  Is there enough data to check?
      if(bytesBuffered >= HEADERSIZE) {
        // Indeed.  Check for a 'magic word' match.
        for(i=0; (i<MAGICSIZE) && (buffer[indexOut++] == magic[i++]););
        if(i == MAGICSIZE) {
          // Magic word matches.  Now how about the checksum?
          hi  = buffer[indexOut++];
          lo  = buffer[indexOut++];
          chk = buffer[indexOut++];
          if(chk == (hi ^ lo ^ 0x55)) {
            // Checksum looks valid.  Get 16-bit LED count, add 1
            // (# LEDs is always> 0) and multiply by 3 for R,G,B.
            bytesRemaining = 3L * (256L * (long)hi + (long)lo + 1L);
            bytesBuffered -= 3;
            spiFlag        = 0;         // No data out yet
            mode           = MODE_HOLD; // Proceed to latch wait mode
          } else {
            // Checksum didn't match; search resumes after magic word.
            indexOut  -= 3; // Rewind
          }
        } // else no header match.  Resume at first mismatched byte.
        bytesBuffered -= i;
      }
      break;

     case MODE_HOLD:

      // Ostensibly "waiting for the latch from the prior frame
      // to complete" mode, but may also revert to this mode when
      // underrun prevention necessitates a delay.

      if((micros() - startTime) < hold) break; // Still holding; keep buffering

      // Latch/delay complete.  Advance to data-issuing mode...
      LED_PORT &= ~LED_PIN;  // LED off
      mode      = MODE_DATA; // ...and fall through (no break):

     case MODE_DATA:

      while(spiFlag && !(SPSR & _BV(SPIF))); // Wait for prior byte
      if(bytesRemaining > 0) {
        if(bytesBuffered > 0) {
          SPDR = buffer[indexOut++];   // Issue next byte
          bytesBuffered--;
          bytesRemaining--;
          spiFlag = 1;
        }
        // If serial buffer is threatening to underrun, start
        // introducing progressively longer pauses to allow more
        // data to arrive (up to a point).
        if((bytesBuffered < 32) && (bytesRemaining > bytesBuffered)) {
          startTime = micros();
          hold      = 100 + (32 - bytesBuffered) * 10;
          mode      = MODE_HOLD;
    }
      } else {
        // End of data -- issue latch:
        startTime  = micros();
        hold       = 1000;        // Latch duration = 1000 uS
        LED_PORT  |= LED_PIN;     // LED on
        mode       = MODE_HEADER; // Begin next header search
      }
    } // end switch
  } // end for(;;)
}

void loop()
{
  // Not used.  See note in setup() function.
}

packages uit de standaard ubuntu repo installeren

aptitude install libusb-1.0-0-dev libx11-dev libxrender-dev libxext-dev

Download van de boblight software en deze compilen

wget https://storage.googleapis.com/google-code-archive-source/v2/code.google.com/boblight/source-archive.zip

unzip source-archive.zip

#compilen
cd boblight
cd trunk
./configure --without-portaudio --without-opengl --without-x11 --prefix=/usr
make
make install

vervolgens moet je een boblight config maken, het LED gedeelte kan je automagisch via deze link laten genereren.

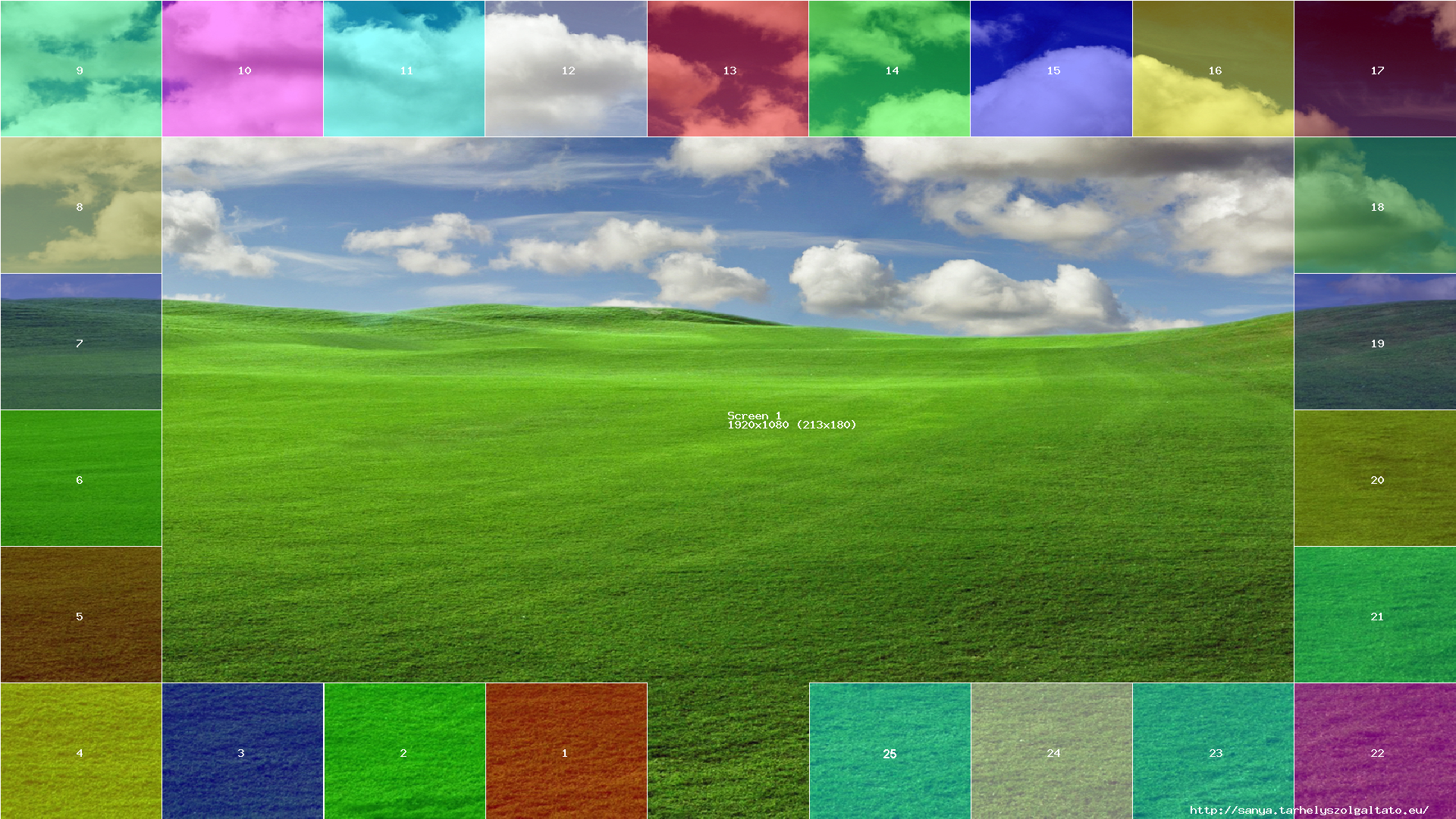

Je krijgt dan het “Light” gedeelte uit de config en een plaatje hoe je de leds moet plaatsen.

(voor 50 leds is deze config bruikbaar)

mcedit /etc/boblight.conf

zet hier de volgende code in :

boblight.conf

#config file for adalight from http://www.ladyada.net/make/adalight/

[global]
interface 127.0.0.1
port      19333

[device]
name            ambilight
type            momo
output            /dev/ttyACM0
channels        150
prefix            41 64 61 00 31 64
interval        10000
rate            115200
debug            off #turn this on to see what it's doing with the serial port
delayafteropen    1000000

[color]
name            red
rgb             FF0000

[color]
name            green
rgb             00FF00

[color]
name            blue
rgb             0000FF

[light]
name            1
color           red     ambilight 1
color           green   ambilight 2
color           blue    ambilight 3
hscan           47.06 52.94
vscan           90.91 100

[light]
name            2
color           red     ambilight 4
color           green   ambilight 5
color           blue    ambilight 6
hscan           35.31 41.19
vscan           90.91 100

[light]
name            3
color           red     ambilight 7
color           green   ambilight 8
color           blue    ambilight 9
hscan           29.43 35.31
vscan           90.91 100

[light]
name            4
color           red     ambilight 10
color           green   ambilight 11
color           blue    ambilight 12
hscan           23.54 29.42
vscan           90.91 100

[light]
name            5
color           red     ambilight 13
color           green   ambilight 14
color           blue    ambilight 15
hscan           17.66 23.54
vscan           90.91 100

[light]
name            6
color           red     ambilight 16
color           green   ambilight 17
color           blue    ambilight 18
hscan           11.77 17.65
vscan           90.91 100

[light]
name            7
color           red     ambilight 19
color           green   ambilight 20
color           blue    ambilight 21
hscan           5.89 11.77
vscan           90.91 100

[light]
name            8
color           red     ambilight 22
color           green   ambilight 23
color           blue    ambilight 24
hscan           0 5.88
vscan           90.91 100

[light]
name            9
color           red     ambilight 25
color           green   ambilight 26
color           blue    ambilight 27
hscan           0 5.88
vscan           81.82 90.91

[light]
name            10
color           red     ambilight 28
color           green   ambilight 29
color           blue    ambilight 30
hscan           0 5.88
vscan           72.73 81.82

[light]
name            11
color           red     ambilight 31
color           green   ambilight 32
color           blue    ambilight 33
hscan           0 5.88
vscan           63.64 72.73

[light]
name            12
color           red     ambilight 34
color           green   ambilight 35
color           blue    ambilight 36
hscan           0 5.88
vscan           54.55 63.64

[light]
name            13
color           red     ambilight 37
color           green   ambilight 38
color           blue    ambilight 39
hscan           0 5.88
vscan           45.46 54.55

[light]
name            14
color           red     ambilight 40
color           green   ambilight 41
color           blue    ambilight 42
hscan           0 5.88
vscan           36.36 45.46

[light]
name            15
color           red     ambilight 43
color           green   ambilight 44
color           blue    ambilight 45
hscan           0 5.88
vscan           27.27 36.36

[light]
name            16
color           red     ambilight 46
color           green   ambilight 47
color           blue    ambilight 48
hscan           0 5.88
vscan           18.18 27.27

[light]
name            17
color           red     ambilight 49
color           green   ambilight 50
color           blue    ambilight 51
hscan           0 5.88
vscan           9.09 18.18

[light]
name            18
color           red     ambilight 52
color           green   ambilight 53
color           blue    ambilight 54
hscan           0 5.88
vscan           0 9.09

[light]
name            19
color           red     ambilight 55
color           green   ambilight 56
color           blue    ambilight 57
hscan           5.88 11.76
vscan           0 9.09

[light]
name            20
color           red     ambilight 58
color           green   ambilight 59
color           blue    ambilight 60
hscan           11.76 17.65
vscan           0 9.09

[light]
name            21
color           red     ambilight 61
color           green   ambilight 62
color           blue    ambilight 63
hscan           17.65 23.53
vscan           0 9.09

[light]
name            22
color           red     ambilight 64
color           green   ambilight 65
color           blue    ambilight 66
hscan           23.53 29.41
vscan           0 9.09

[light]
name            23
color           red     ambilight 67
color           green   ambilight 68
color           blue    ambilight 69
hscan           29.41 35.29
vscan           0 9.09

[light]
name            24
color           red     ambilight 70
color           green   ambilight 71
color           blue    ambilight 72
hscan           35.29 41.18
vscan           0 9.09

[light]
name            25
color           red     ambilight 73
color           green   ambilight 74
color           blue    ambilight 75
hscan           41.18 47.06
vscan           0 9.09

[light]
name            26
color           red     ambilight 76
color           green   ambilight 77
color           blue    ambilight 78
hscan           47.06 52.94
vscan           0 9.09

[light]
name            27
color           red     ambilight 79
color           green   ambilight 80
color           blue    ambilight 81
hscan           52.94 58.82
vscan           0 9.09

[light]
name            28
color           red     ambilight 82
color           green   ambilight 83
color           blue    ambilight 84
hscan           58.82 64.71
vscan           0 9.09

[light]
name            29
color           red     ambilight 85
color           green   ambilight 86
color           blue    ambilight 87
hscan           64.71 70.59
vscan           0 9.09

[light]
name            30
color           red     ambilight 88
color           green   ambilight 89
color           blue    ambilight 90
hscan           70.59 76.47
vscan           0 9.09

[light]
name            31
color           red     ambilight 91
color           green   ambilight 92
color           blue    ambilight 93
hscan           76.47 82.35
vscan           0 9.09

[light]
name            32
color           red     ambilight 94
color           green   ambilight 95
color           blue    ambilight 96
hscan           82.35 88.23
vscan           0 9.09

[light]
name            33
color           red     ambilight 97
color           green   ambilight 98
color           blue    ambilight 99
hscan           88.23 94.12
vscan           0 9.09

[light]
name            34
color           red     ambilight 100
color           green   ambilight 101
color           blue    ambilight 102
hscan           94.12 100
vscan           0 9.09

[light]
name            35
color           red     ambilight 103
color           green   ambilight 104
color           blue    ambilight 105
hscan           94.12 100
vscan           9.09 18.18

[light]
name            36
color           red     ambilight 106
color           green   ambilight 107
color           blue    ambilight 108
hscan           94.12 100
vscan           18.18 27.27

[light]
name            37
color           red     ambilight 109
color           green   ambilight 110
color           blue    ambilight 111
hscan           94.12 100
vscan           27.27 36.36

[light]
name            38
color           red     ambilight 112
color           green   ambilight 113
color           blue    ambilight 114
hscan           94.12 100
vscan           36.36 45.45

[light]
name            39
color           red     ambilight 115
color           green   ambilight 116
color           blue    ambilight 117
hscan           94.12 100
vscan           45.45 54.54

[light]
name            40
color           red     ambilight 118
color           green   ambilight 119
color           blue    ambilight 120
hscan           94.12 100
vscan           54.54 63.64

[light]
name            41
color           red     ambilight 121
color           green   ambilight 122
color           blue    ambilight 123
hscan           94.12 100
vscan           63.64 72.73

[light]
name            42
color           red     ambilight 124
color           green   ambilight 125
color           blue    ambilight 126
hscan           94.12 100
vscan           72.73 81.82

[light]
name            43
color           red     ambilight 127
color           green   ambilight 128
color           blue    ambilight 129
hscan           94.12 100
vscan           81.82 90.91

[light]
name            44
color           red     ambilight 130
color           green   ambilight 131
color           blue    ambilight 132
hscan           94.12 100
vscan           90.91 100

[light]
name            45
color           red     ambilight 133
color           green   ambilight 134
color           blue    ambilight 135
hscan           88.24 94.12
vscan           90.91 100

[light]
name            46
color           red     ambilight 136
color           green   ambilight 137
color           blue    ambilight 138
hscan           82.35 88.24
vscan           90.91 100

[light]
name            47
color           red     ambilight 139
color           green   ambilight 140
color           blue    ambilight 141
hscan           76.47 82.35
vscan           90.91 100

[light]
name            48
color           red     ambilight 142
color           green   ambilight 143
color           blue    ambilight 144
hscan           70.59 76.47
vscan           90.91 100

[light]
name            49
color           red     ambilight 145
color           green   ambilight 146
color           blue    ambilight 147
hscan           64.71 70.59
vscan           90.91 100

[light]
name            50
color           red     ambilight 148
color           green   ambilight 149
color           blue    ambilight 150
hscan           58.82 64.71
vscan           90.91 100

Met de prefix bepaal je ook hoeveel leds je aanstuurd, gebruik dus altijd de juiste

Prefix for 25 LEDS: 41 64 61 00 18 4D
Prefix for 50 LEDS: 41 64 61 00 31 64
Prefix for 100 LEDS: 41 64 61 00 63 36

uiteraard willen we het geheel automagisch starten.

mcedit /usr/lib/systemd/system/boblight.service

zet hier het volgende in

boblight.service

[Unit]
Description=Boblight Ambient Lighting Daemon
DefaultDependencies=no
After=network.target

[Service]
ExecStart=/usr/bin/boblightd > /var/log/boblightd 2>&1
Restart=on-abort

[Install]
WantedBy=multi-user.target

en laat deze automagisch starten

systemctl daemon-reload
systemctl enable boblight

Arduino Uno

led string

Arduino programeer software
